TS27R – kontaktbaserad prob för verktygsinställning

Denna sida finns för närvarande inte på ditt språk. Du kan översätta den automatiskt med Google Translate. Vi ansvarar inte för att tillhandahålla denna tjänst och vi har inte kontrollerat översättningsresultaten.
Kontakta oss om du behöver ytterligare hjälp.

Sidans innehåll Nedladdningsbara filer Ring närmaste kontor Kontakta oss online

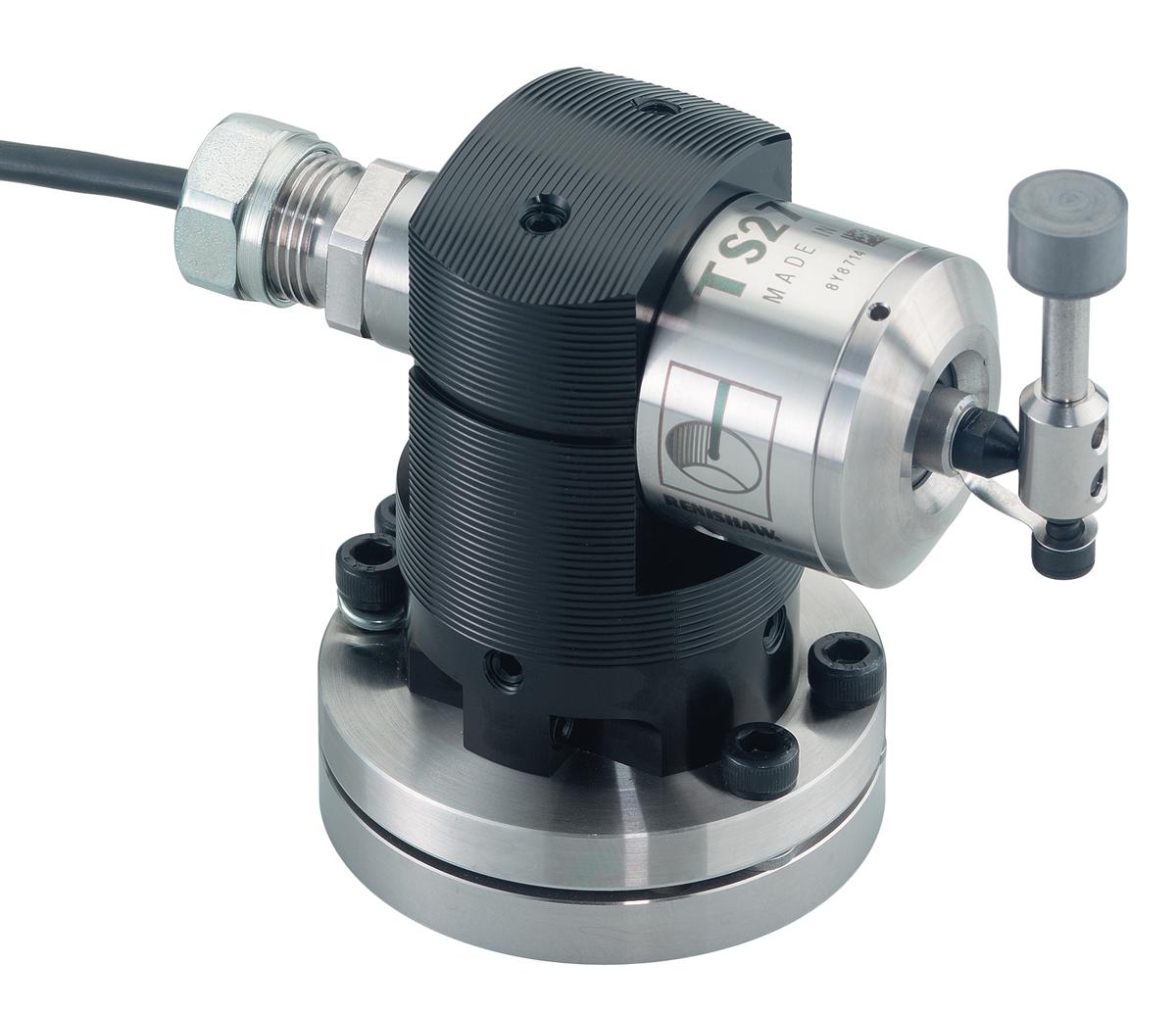

TS27R The industry-standard contact probe for tool setting and broken tool detection on vertical machining centres.

About TS27R

TS27R TS27R is mounted on the machine table. It enables the user to set tool length and diameter of rotating tools, and to carry out broken tool detection.

As with all Renishaw hard-wired probe systems, TS27R requires the MI 8 interface to convert probe signals into an acceptable form for the CNC machine control.

TS27R features and benefits

The standard tool setting probe for machining centres
Compact table mounting
Precise tool length and diameter measurement
Rotating tools can be checked without wear to the tool or stylus
Stylus is protected by a weak link, preventing probe damage in the event of a collision

TS27R specification

Specification
Sense directions	±X, ±Y, +Z
Weight	650 g (23 oz)
Transmission type	Hard-wired
Uni-directional repeatability (max 2 sigma at stylus tip)	1.0 µm (0.00004 in)
Trigger force Lowest force Highest force	1.3 N (4.6 ozf) 2.4 N (8.5 ozf)
Stylus overtravel XY plane +Z direction	±10° 5.5 mm (0.21 in)
Maximum recommended stylus length	Cranked stylus 27 x 33 mm (1.06 x 1.3 in)
Sealing	IP X8
Mounting	12 mm (0.5 in) T-bolt (not supplied). Optional spiral pins to allow accurate re-mounting.
Compatible interface	MI 8 /MI 8-4

Software for TS27R

Renishaw tool setting software allows you to set tool length and diameter offsets for single point and multiple point tools, perform in cycle broken tool detection and manual or automatic (programmed) positioning.

Alternative tool setters

NC4 non-contact system

OTS (twin probing)

TS32 with optical transmission

NC4-separate

NC4 is the latest generation of non-contact tool setter and our most compact design.

OTS

OTS uses an optical transmission method, allowing cable-free operation of the machine table.

OTS can also be used as part of a twin probe - single receiver - system.

TS32

TS32 is an optical alternative to the TS27R, however Renishaw recommends upgrading to the new OTS tool setter.

TS27R ordering information

TS27R probe and interface

Part number	Description
A-2008-0397	TS27R full kit disk stylus, MI 8-4 interface
A-2008-0396	TS27R full kit square stylus, MI 8-4 interface
A-2008-0367	TS27R full kit disk stylus, MI 8 interface
A-2037-0366	TS27R full kit square stylus, MI 8 interface
A-2008-0368	TS27R kit disk stylus

TS27R replacement parts and accessories

Part number	Description
A-2008-0388	TS27R probe and holder
A-2008-0382	Disc stylus ø12.7 mm (ø0.5 in)
A-2008-0384	Square stylus 19.05 mm x 19.05 mm (0.75 in x 0.75 in)
A-5003-5171	TS27R break stem kit
A-5003-0661	Break stem
A-2037-0020	MI 8 interface kit
A-2157-0001	MI 8-4 interface kit
